#include <OpenGL/OpenGL.h>
#include <GLUT/GLUT.h>
#include <iostream>
#define _WINDOW_WIDTH 800
#define _WINDOW_HEIGHT 800
GLfloat MyVertices[8][3] = {{-0.25,-0.25,0.25},{-0.25,0.25,0.25},{0.25,0.25,0.25},
{0.25,-0.25,0.25},{-0.25,-0.25,-0.25},{-0.25,0.25,-0.25},
{0.25,0.25,-0.25},{0.25,-0.25,-0.25}};

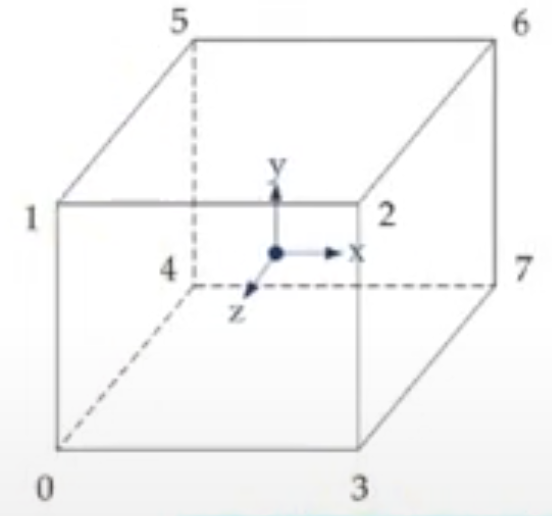

//정육면체의 8개의 정점 3차원 좌표(꼭지점)
//순서대로 0부터 7번의 번호가 매겨질 것이다.(밑에서)
GLfloat MyColor[8][3] = {{0.2,0.2,0.2},{1.0,0.0,0.0},{1.0,1.0,0.0},
{0.0,1.0,0.0},{0.0,0.0,1.0},{1.0,0.0,1.0},
{1.0,1.0,1.0},{0.0,1.0,1.0}};
//각 정점마다 색깔
void MyDisplay(){
glClear(GL_COLOR_BUFFER_BIT);
int VertexList[6][4] = {{0,3,2,1},{2,3,7,6},{7,4,5,6},{1,2,6,5},{0,3,7,4},{0,4,5,1}};
//각 정점에 번호를 매기고 그 번호에 따라 면을 지정함
for(int i = 0; i < 6; i++){
int index0 = VertexList[i][0];//6번 돌면서 각 정점 번호에 모두 접근하여 값을 할당한다.
int index1 = VertexList[i][1];
int index2 = VertexList[i][2];
int index3 = VertexList[i][3];
glBegin(GL_POLYGON);
//정점 번호가 0번이면 {-0.25,-0.25,0.25}가 들어갈 것이다.
//이렇게 모든 정점 번호들을 할당시켜준다.
glColor3fv(MyColor[index0]); glVertex3fv(MyVertices[index0]);
glColor3fv(MyColor[index1]); glVertex3fv(MyVertices[index1]);
glColor3fv(MyColor[index2]); glVertex3fv(MyVertices[index2]);
glColor3fv(MyColor[index3]); glVertex3fv(MyVertices[index3]);
glEnd();
}
glFlush();
}
void MyReshape(int width, int height){
glViewport(0, 0, width, height);
GLfloat f_w = (GLfloat)width / (GLfloat)_WINDOW_WIDTH;
GLfloat f_h = (GLfloat)height / (GLfloat)_WINDOW_HEIGHT;
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glOrtho(-1.0*f_w, 1.0*f_w, -1.0*f_h, 1.0*f_h, -2, 2);
gluLookAt(0.5, 0.5, 1, 0, 0, 0, 0, 1, 0); //보는 각도 조절
//위치를 약간 오른쪽으로 틀고 보고자 하는 객체를 바라보도록(0,0,0)지정
//카메라의 머리는 y축방향으로 위쪽을 보도록함. 일반적으로 (0,1,0)을 씀.(0,1,0)이 아니면 카메라를
//돌려서 사용하는거나 마찬가지니까 그럴일이 별로 없으니..
//gluPerspective로 구현할 수 있지만 이 내용은 나중에 하므로
//일단 gluLookAt으로 대용함
}
int main(int argc, char ** argv) {
glutInit(&argc, argv);
glutInitDisplayMode(GLUT_RGB);
glutInitWindowSize(_WINDOW_WIDTH, _WINDOW_HEIGHT);

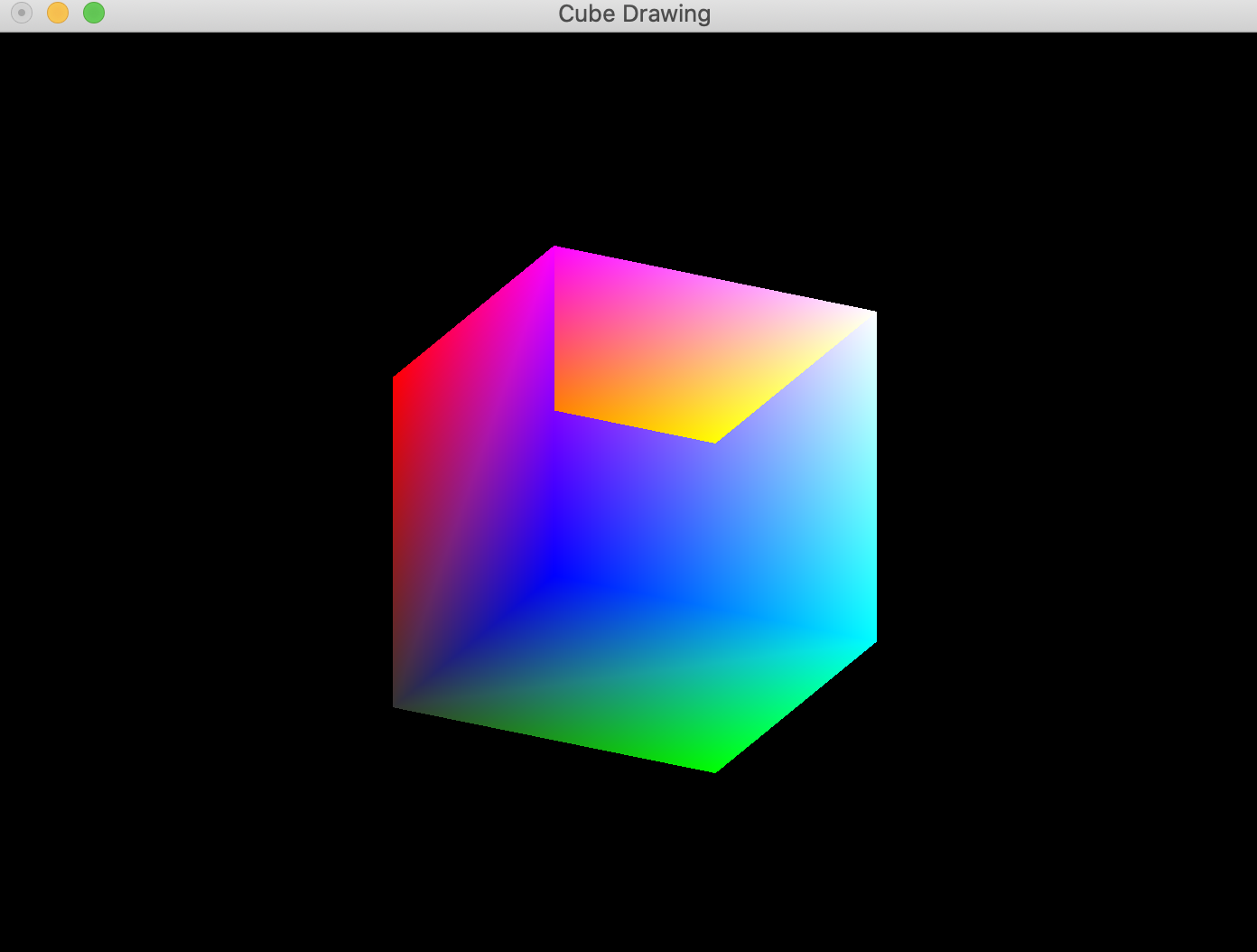

glutCreateWindow("Cube Drawing");
//콜백함수
glutDisplayFunc(MyDisplay);
glutReshapeFunc(MyReshape);
glutMainLoop();
}
void WINAPI glColor3fv( const GLfloat *v);
//인자 설명 :
//빨강, 녹색, 및 파랑 값을 포함하는 배열에 대한 포인터이다. 따라서, 배열값을 인자로 넘겨주어 컬러를 지정할 수 있다.
void glVertex3fv( const GLfloat *v);
//인자 설명 :
//한 정점에 대한 3차원 좌표 배열에 대한 포인터이다.

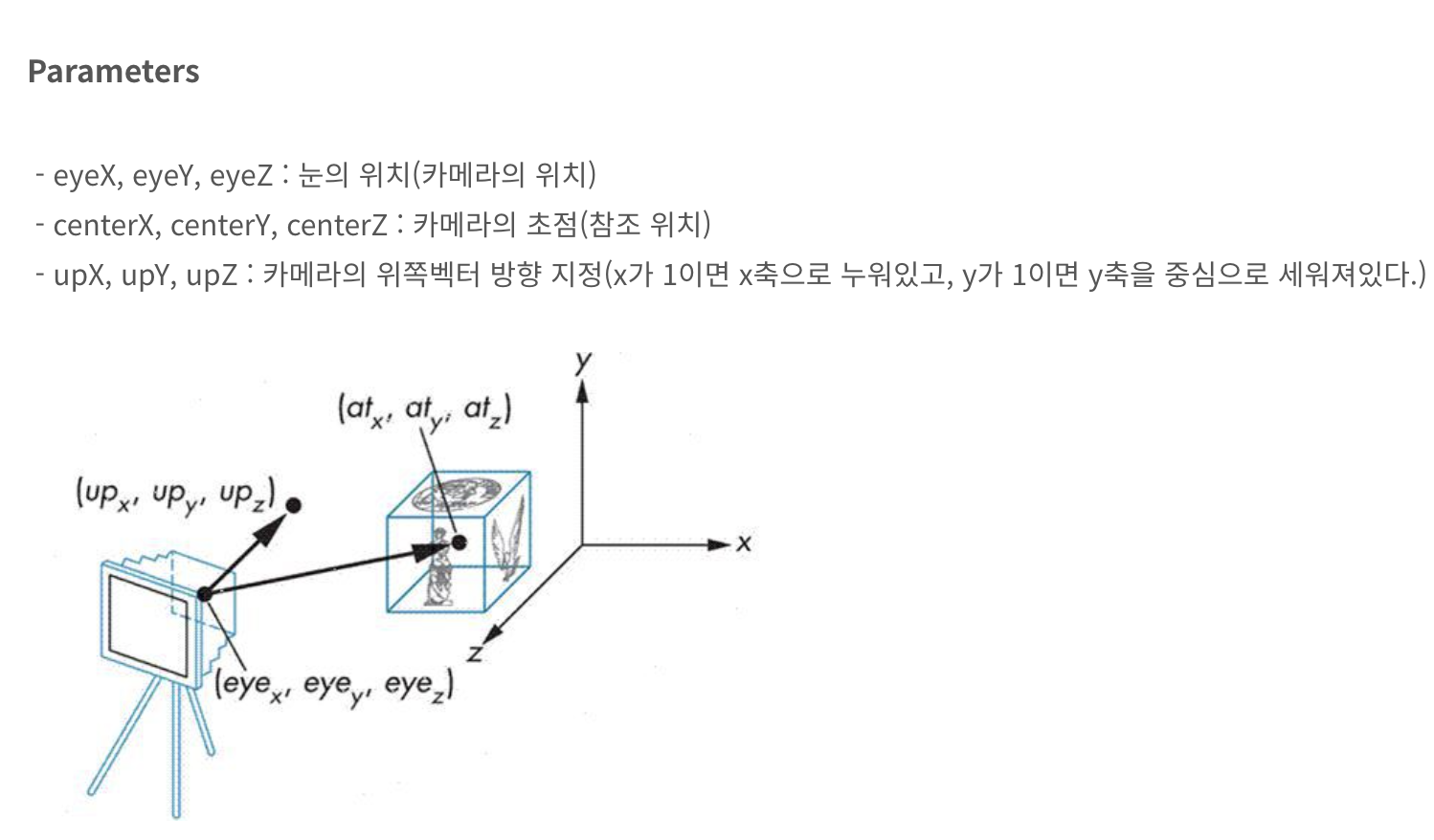

void WINAPI gluLookAt(GLdouble eyex,GLdouble eyey,GLdouble eyez,
GLdouble centerx,GLdouble centery,GLdouble centerz,
GLdouble upx,GLdouble upy,GLdouble upz
);
//View Transform Matrix를 정의하는 함수
//시점 좌표계를 정의하는 함수로, (eyeX, eyeY, eyeZ)에 있는 카메라가 (centerX, centerY, cneterZ)에 있는
초점을 바라보는 것이다.
//(upX, upY, upZ)는 카메라 상향 벡터이다.

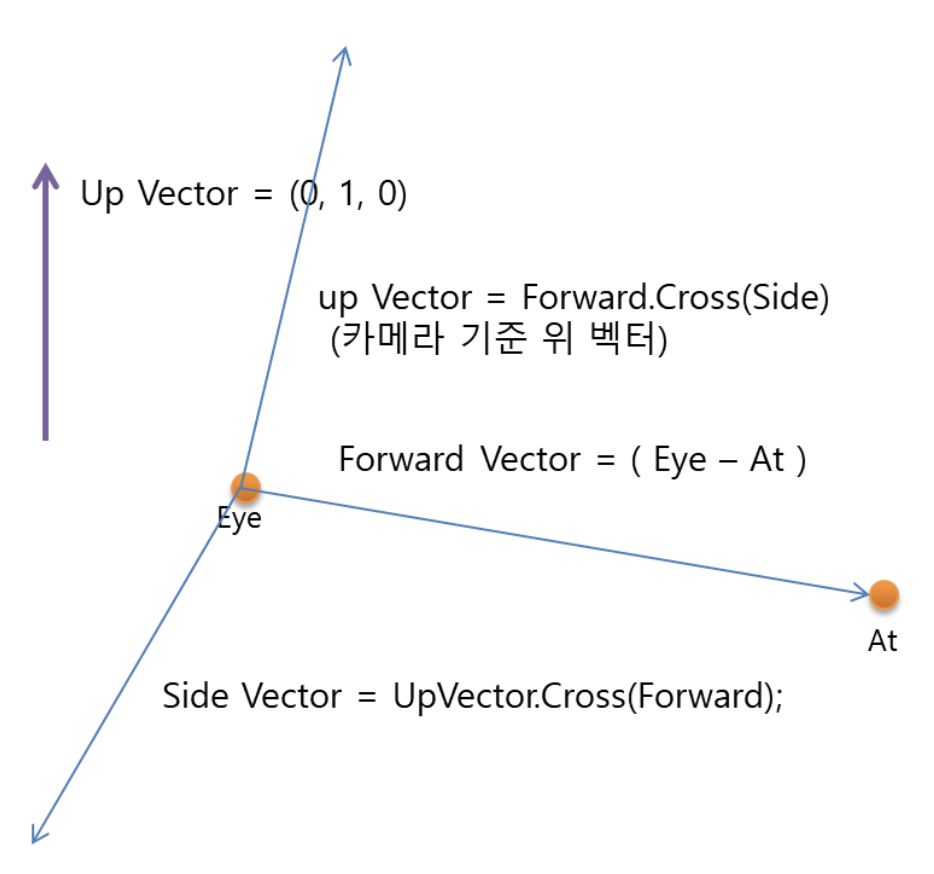

sideVector는 UpVector와 ForwardVector의 외적이다. 두 벡터의 곱은, 두 벡터가 이루는 평면에 수직인 벡터를 만든다.
3차원 Cube그리기 함수 : drawCube
#include <OpenGL/OpenGL.h>
#include <GLUT/GLUT.h>
#include <iostream>
#define _WINDOW_WIDTH 1200
#define _WINDOW_HEIGHT 1200
//GLfloat MyVertices[8][3] = {{-0.25,-0.25,0.25},{-0.25,0.25,0.25},{0.25,0.25,0.25},{0.25,-0.25,0.25},{-0.25,-0.25,-0.25},{-0.25,0.25,-0.25},{0.25,0.25,-0.25},{0.25,-0.25,-0.25}}; //3차원 공간 상의 각 정점, 너비가 0.5인 큐브
GLfloat defaultCube[8][3] = {{-0.5,-0.5,0.5},{-0.5,0.5,0.5},{0.5,0.5,0.5},{0.5,-0.5,0.5},{-0.5,-0.5,-0.5},{-0.5,0.5,-0.5},{0.5,0.5,-0.5},{0.5,-0.5,-0.5}}; //3차원 공간 상의 각 정점, 너비가 1인 큐브
GLfloat MyColor[8][3] = {{0.2,0.2,0.2},{1.0,0.0,0.0},{1.0,1.0,0.0},{0.0,1.0,0.0},{0.0,0.0,1.0},{1.0,0.0,1.0},{1.0,1.0,1.0},{0.0,1.0,1.0}};
//각 정점마다 색깔
void drawCube(GLfloat size, GLfloat x, GLfloat y, GLfloat z){
//defaultCube를 이용해서 새로운 큐브를 만듬
GLfloat MyCube[8][3];
for(int i = 0; i < 8; i++){
MyCube[i][0] = size * defaultCube[i][0] + x; //크기가 늘어난 상태로. 이동
MyCube[i][1] = size * defaultCube[i][1] + y; // 0은 x축 1은 y축 z는 z축
MyCube[i][2] = size * defaultCube[i][2] + z;
}
int index[6][4] = {{0,3,2,1},{2,3,7,6},{7,4,5,6},{1,2,6,5},{0,3,7,4},{0,4,5,1}};
for(int i = 0; i < 6; i++){
int index0 = index[i][0];
int index1 = index[i][1];
int index2 = index[i][2];
int index3 = index[i][3];
glBegin(GL_POLYGON);
glColor3fv(MyColor[index0]); glVertex3fv(MyCube[index0]);
glColor3fv(MyColor[index1]); glVertex3fv(MyCube[index1]);
glColor3fv(MyColor[index2]); glVertex3fv(MyCube[index2]);
glColor3fv(MyColor[index3]); glVertex3fv(MyCube[index3]);
glEnd();
}
}
void MyDisplay(){
glClear(GL_COLOR_BUFFER_BIT);

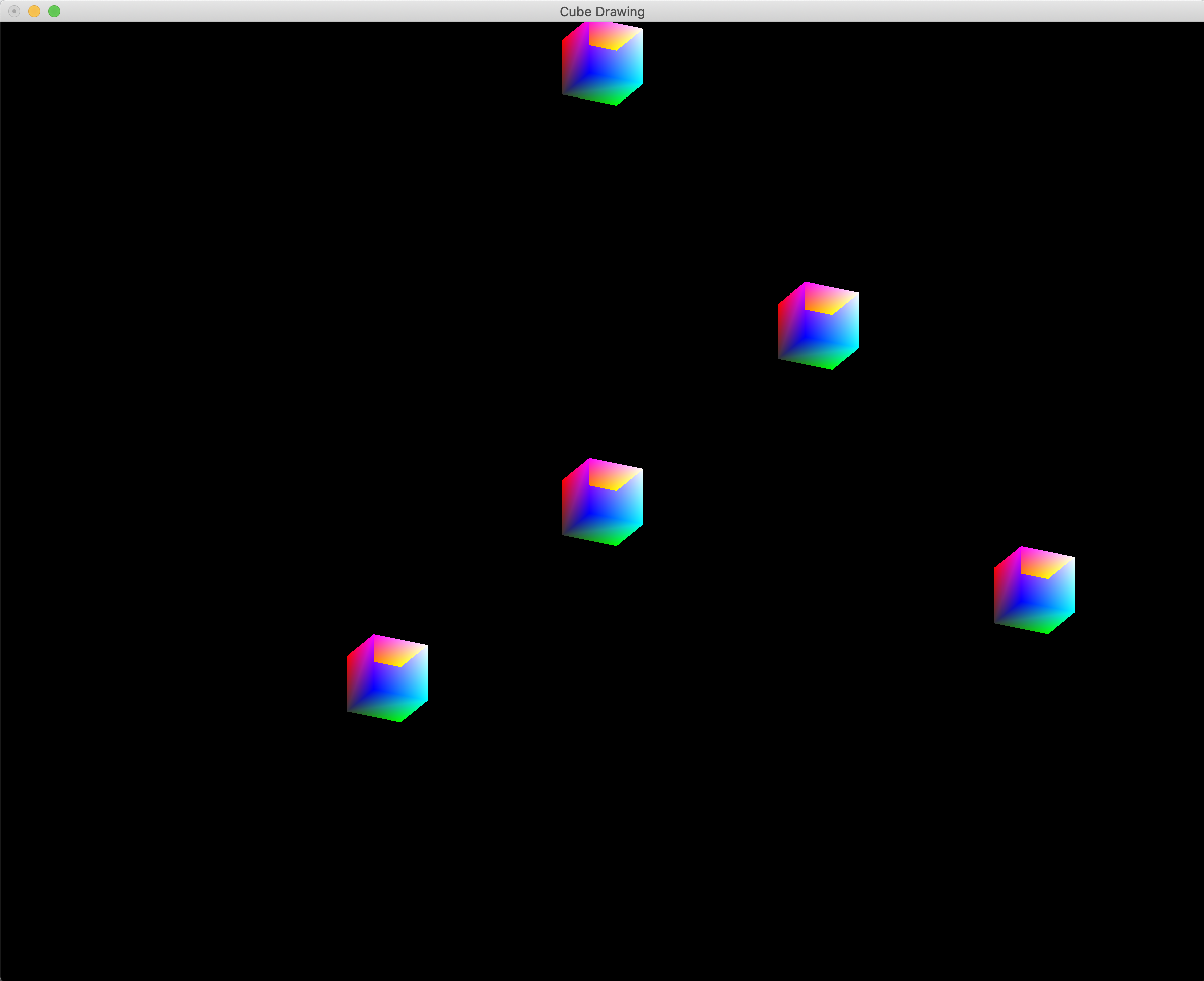

//원근감은 표현이 안돼있지만 좌표상에는 잘 찍히는 것을 볼 수 있다.
drawCube(0.1, 0, 0,0);
drawCube(0.1, 0.8,0,0);
drawCube(0.1, 0 , 0.8,0);
drawCube(0.1, 0 , 0,0.8);
drawCube(0.1,0.8,0.8,0.8);
glFlush();
}
void MyReshape(int width, int height){
glViewport(0, 0, width, height);
GLfloat f_w = (GLfloat)width / (GLfloat)_WINDOW_WIDTH;
GLfloat f_h = (GLfloat)height / (GLfloat)_WINDOW_HEIGHT;
glMatrixMode(GL_PROJECTION);
glLoadIdentity();
glOrtho(-1.0*f_w, 1.0*f_w, -1.0*f_h, 1.0*f_h, -2, 2);
gluLookAt(0.5, 0.5, 1, 0, 0, 0, 0, 1, 0);
}
int main(int argc, char ** argv) {
glutInit(&argc, argv);
glutInitDisplayMode(GLUT_RGB); //이중 버퍼링을 위해 이중버퍼 사용
glutInitWindowSize(_WINDOW_WIDTH, _WINDOW_HEIGHT);
glutCreateWindow("Cube Drawing");
//콜백함수
glutDisplayFunc(MyDisplay);
glutReshapeFunc(MyReshape);
glutMainLoop();
}
출처 : https://huiyu.tistory.com/entry/gluLookAt%ED%95%A8%EC%88%98
